Dongfeng Freezer Van Refrigerated Box Cold Storage Truck With Hydraulic Gate
Refrigerator truck named freezer van truck, cooling van truck, frozen truck is the enclosed van used for transporting the fresh and frozen goods, vegetables and fruits, milk goods and vaccines. It is the van truck equipped with refrigerator device with which inside temperature could be optional of -5°, 10°,-16°,-18°.The surface of van body could be made of fiberglass, aluminum or stainless steel. The padding material with varieties ofthickness is polyurethane foam that could preserve the temperature.
The cooling device could be of famous brand such as Carrier,Thermoking etc.There are two types of power driving ways,one is powered by vehicle engine through PTO, the other one is driven by independent power unit.
| Vehicle description |
| Overall dimension | 12000*2600*3990mm |
| GVW | 20500kg |
| Curb weight | 14600kg |
| Chassis brand | DONGFENG |
| Traction type | 8*4, left hand drive |
|
| Chassis description |
| Cab | Sleeper cab,forward control type,low roof,new face, all welded steel cab of tilt type,air conditioner,rear mechanical cab suspension,adjustable driver's seat; mechanical cab tilting,electric windows,electric door lock. |
| Wheelbase | 1950+5350+1350mm |
| Tire specification | 315/80R22.5 |
| Tire quantity | 12+1 units |
| Engine | Engine model | Dongfeng Cummins 375 |
| Emission level | Euro 2 |
| Displacement (lit) | 10 |
| Maximum power | 375hp at 2200 rpm |
| Gear box | Type | 9JS119TB |
| Number of gears | 9 forward gears & 1 reverse ,synchronized |
| Brake system | Full air brake system, split pneumatic circuit ;parking spring brake acting on rear axles ; exhaust brake. |
| Axle load | Front | 5 |
| load capacity(ton) |
| Rear | 13 |
| load capacity(ton) |
| Suspension | Front | 8- Leaf spring |
| Rear | (9+9)-leaf spring |
| Fuel | Type | Steel fuel tank, with lockable cap |
| Capacity(lit) | 35 |
|
| Up-parts description |
| Van dimension | 9400*2600*2700mm |
| Material | Inner | Fiberglass |
| Outer | Fiberglass |
| Interlayer | XPS or polyurethane board |
| Thickness | 80-102mm |
| Cooling system | Equipped Kaixue /Thermal King/Carrier |
| Lowest temperature | -15°-18° |
| Other optional configuration | Aluminum ventilation trough/ Stainless steel cargo tracks/Bottom rails aluminum extrusion |
| Standard configuration | Equipped with cooling system /Equipped with rear door |
Established in Sep. 2004,Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100,000,000 RMB(14
millions US Dollars) and total capital 6,000,000,000(840 millions US Dollars).
Overseas Market
Trucks from Chengli Special Automobile Co., Ltd have been sold to more than 29 provinces in China and more than 80 overseas countries and regions in
Asia, Africa, South America, middle east and so on, such as Russia, Mongolia, Philippines, Vietnam, Cambodia, Myanmar, Laos, Kazakhstan, Uzbekistan,
Kyrghzstan, Tanzania, Zambia, Nigeria, Australia, Chile, Bolivia, Ethiopia, Sudan, Malaysia, Congo, El Salvador, Iraq, New Zealand, Chile, Bolivia, Argentina and also truck body for client drawing
|
|

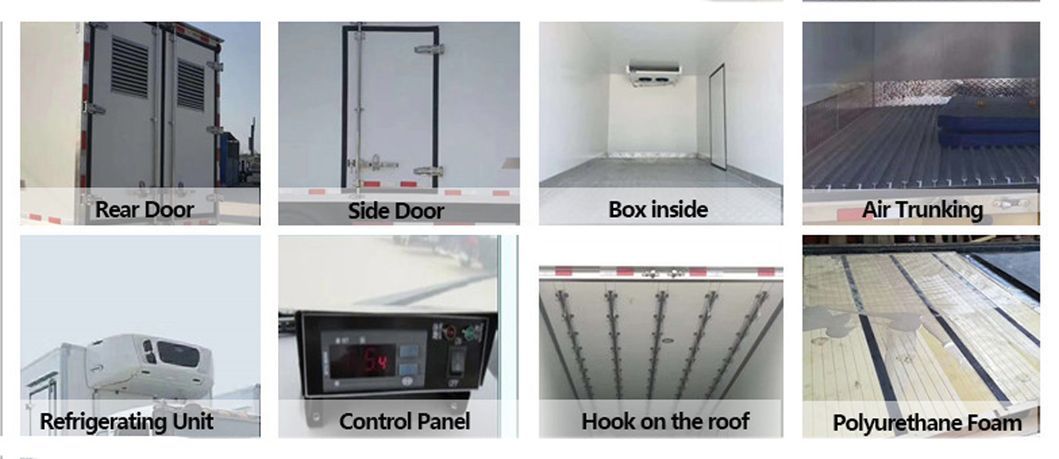

Dongfeng Freezer Van Refrigerated Box Cold Storage Truck With Hydraulic Gate Images
|
